Purpose-Designed
The 3000 Series from Sound Bridge are 2-way, full-range devices with integral passive crossover networks. The series was designed specifically to compliment 7000 Series systems in a variety of uses for both the concert/live sound and the permanent installation markets.
3000 Series enclosures supplement 7000 Series line array systems by serving as front-fills, under-balcony speakers, delay ring speakers, and in many other capacities. 3000 Series enclosures also work well in smaller, lower-ceiling rooms and as distributed systems.
Horizontal Configuration, High Output

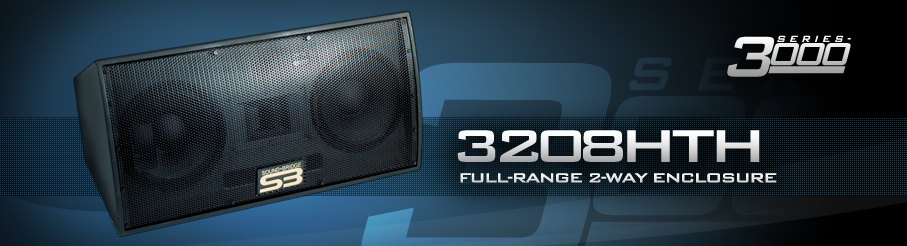

The 3208HTH is a horizontally-configured enclosure that is well-suited for stage-front and under-balcony situations. With highly efficient dual 8” drivers, the 3208HTH delivers 131dB peak output with low-frequency extension below 60Hz. The cabinet includes integral steel rigging points, allowing easy suspension with the use of the optional u-bracket.
Durability
3000 Series enclosures are finished in 100% solid tour-grade DuracoatTM. This long-life surface is highly abrasion resistant so boxes stay new-looking, even in rigorous applications.
Custom Colors
3000 Series enclosures are available in custom colors to match the décor of the venue they are being installed in. Practically any color is possible, based on matching a customer-provided sample or Pantone color.
- Live/Concert Sound Fills
- Houses of Worship
- Clubs/Lounges
- Theaters/Performance Venues
Horizontal Dispersion: 110-degrees
Vertical Dispersion: 70-degrees
Frequency Response: 60Hz –to- 18 kHz, +/-3dB
Max SPL: 125dB continuous, 131dB peak
LF Drive Unit(s): (2) 8” Cone Driver
HF Drive Unit(s): (1) 1” Titanium HF
Sensitivity: 99dB 1w/1m
Power Handling: 450w (Cont), 900w (Peak)
Impedance: 4-Ohms
Cabinet Construction: 13-Ply ¾” high-quality Baltic Birch plywood with dado joints, recessed baffle and 16-guage front-perforated steel grill
Cabinet Finish: Tour-Grade DuracoatTM
Connections: (2) Neutrik NL-4 Speakon
Dimensions (Imperial): 10.5” x 25.5” x 11.5”
Dimensions (Metric): 26.7cm x 65cm x 29.2cm
Weight: 48lbs (21.8kgs)
Available Accessories: UB-3208 U-Bracket wall/ceiling mount
