Purpose-Designed
The 3000 Series of floor monitors from Sound Bridge are high-performance 2-way enclosures with switchable passive crossover networks, which allow operation in either biamp or full-range passive modes. The series was designed to be the best solution when the extreme high power and output capacity of the 7000 Series SLICETM floor monitors is not required.

Horizontal Configuration, High Output

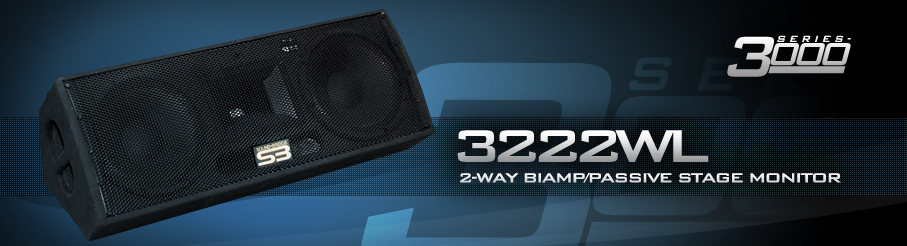

The 3222WL enclosure is horizontally-configured to provide maximum performance in a sleek low-profile package that won’t clutter up appearances on the stage. The 3222WL is loaded with premium components to ensure best-in-class performance. The dual 12” LF drivers combine with a powerful 2” exit HF driver to deliver 133dB peak output and low-frequency extension below 45Hz.

Durability
3000 Series enclosures are finished in 100% solid tour-grade DuracoatTM. This long-life surface is highly abrasion resistant so boxes stay new-looking, even in rigorous applications.

Custom Colors
3000 Series enclosures are available in custom colors to match the décor of the venue they are being installed in. Practically any color is possible, based on matching a customer-provided sample or Pantone color.




application
- Live/Concert Sound
- Houses of Worship
- Clubs/Lounges
- Theaters/Performance Venues
- Corporate Rental Houses
specifications

Horizontal Dispersion: 110-degrees
Vertical Dispersion: 70-degrees

Frequency Response: 45Hz –to- 18 kHz, +/-3dB

Max SPL: 127dB continuous, 133dB peak

LF Drive Unit(s): (2) 12” Cone Driver
HF Drive Unit(s): (1) 2” Titanium HF

Sensitivity: 99dB 1w/1m
Power Handling: 650w (Cont), 1300w (Peak)
Impedance: 4-Ohms

Cabinet Construction: 13-Ply ¾” high-quality Baltic Birch plywood with dado joints, recessed baffle and 16-guage front-perforated steel grill
Cabinet Finish:  Tour-Grade DuracoatTM
Connections:  (2) Neutrik NL-4 Speakon

Dimensions (Imperial): 14.75” x 38” x 17”
Dimensions (Metric): 37.5cm x 96.5cm x 43.2cm
Weight: 92lbs (42kgs)
