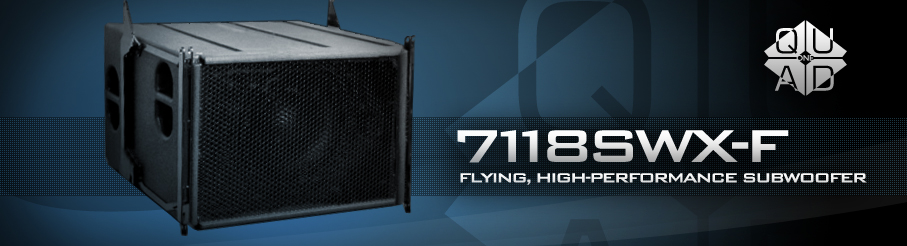

The 7118SWX-F is a high-performance; high-output subwoofer system designed to compliment XYON™ line array systems in a variety of permanently-installed and live sound reinforcement applications.

The 7118SWX-F utilizes advanced components and technology to attain the highest performance levels. The use of a highly-efficient and high power-handling, yet lightweight, Neodymium driver results in massive output relative to size and weight.

The 7118SWX-F version is intended for flown applications and includes the integrated XYON™ Z-MAX modular rigging system. 7118SWX-F enclosures may be transported in two’s or four’s on DL-7118 Dolly Boards, and padded transports covers are available.

Recommended amp and cabling configurations are available, as well as DSP processor settings for many commonly used system controllers.

The 7118SWX-F is the perfect companion subwoofer for XYON™ 7108XY line array system. 7118SWX-F subwoofers may be flown at the top of 7108XY arrays or in separate bass hangs.


- Houses of Worship
- Theaters/Performance Venues
- Live/Concert Sound
- Corporate Rental Houses
- Clubs/Lounges

Frequency Response: 38Hz –to- 200Hz, +/-3dB

Max SPL: 135dB SPL (1 unit), 147dB (4 units)

LF Drive Unit(s): (2) Neodymium 18” Cone
LF: Sensitivity: 105dB 1w/1m
LF Power Handling: 2000w (AES), 8000w (Peak)
LF Impedance: 4-Ohms

Cabinet Construction: 18mm 13-Ply Baltic Birch,
High Tensile UHMW Composite
Cabinet Finish: Tour-Grade DuracoatTM
Hardware: XYON™ Z-MAX modular rigging system
Connections: (2) Neutrik NL-4 Speakon

Dimensions (Imperial): 19” x 38.75” x 26.25”
Dimensions (Metric): 48.3cm x 98.4cm x 66.7cm
Weight: 192lbs (87.1kgs)

Available Accessories: FB-7208/7218L Touring Fly Bar, DL-7218 Dolly Board (up to 4 units), CV2-7218 Padded Transport Cover (2 units on dolly)
