SLICETM = Performance
Designed for the concert sound industry and the high-end installation market where extremely high output and sonic precision are critical, the SLICETM Series of high-performance stage monitors stand above the pack.

Loud, Light, Low-Profile

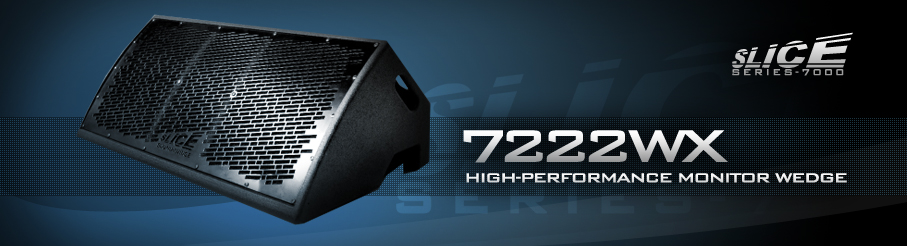

By delivering a powerful 140dB SPL peak output, while weighing in at only 72 pounds and standing 14.5” tall, the 7222WX represents the top of market with regards to output versus size/weight.

Crisp Highs, Clean Mids
A key feature of the SLICETM series is the use of a 2” Neodymium Mid/HF EXO driver. One driver, which excels at eliminating crossover and phase/time anomalies, reproduces all frequencies from critical vocal intelligibility range up through upper-harmonics and to top of the frequency band. This results in a clean, pure vocal and upper-mid response that sounds more natural than the traditional “PA sound” and cuts through better on a loud stage. Mixes never sound “crowded” or “muddy”.

Strong Lows
The 7222WX utilizes two high-output, high-efficiency neodymium 12” low-frequency drivers. Loaded in the solid 13-ply birch cabinet, the system is tuned to provide LF extension below 40Hz.

Roadworthy
SLICETM Series stage monitors are finished in 100% solid tour-grade DuracoatTM. This surface is highly abrasion resistant for rigorous touring applications.

Units are wired for Biamp operation. Recommended amp and cabling configurations are available, as well as DSP processor settings for many commonly used system controllers.




application
- Live/Concert Sound
- Touring Sound Companies
- Large Houses of Worship
- Theaters/Performance Venues
- Corporate Rental Houses
specifications

Horizontal Dispersion: Asymmetrical, 90-degrees near-field narrowing to 50-degrees at 3m
Vertical Dispersion: 40-degrees

Frequency Response: 38Hz –to- 18 kHz, +/-3dB

Max SPL: 136dB continuous, 142dB peak

LF Drive Unit(s): (2) Neodymium 12” Cone
LF: Sensitivity: 104dB 1w/1m
LF Power Handling: 1800w (AES), 7200w (Peak)
LF Impedance: 4-Ohms

HF Drive Unit(s): (1) Neodymium MF/HF EXO
HF Sensitivity: 118dB 1w/1m
HF Power Handling: 250w (AES), 1000w (Peak)
HF Impedance: 16-Ohms

Cabinet Construction: 18mm 13-Ply Baltic Birch, High Tensile UHMW Composite
Cabinet Finish:  Tour-Grade DuracoatTM
Connections:  (2) Neutrik NL-4 Speakon

Dimensions (Imperial): 14.5” x 37” x 20.5”
Dimensions (Metric): 36.8cm x 94cm x 52.1cm
Weight: 72lbs (32.7kgs)
